High-Resolution Imaging of Knee Meniscus Anatomy and Tears

Accurate detection and characterization of meniscal tears is essential for managing symptomatic knees. Conventional two-dimensional (2D) magnetic resonance imaging imaging (MR) has served as the standard for this purpose; however, recent advances in three-dimensional (3D) isotropic MR imaging offer improved spatial resolution and multiplanar reformation capabilities that enhance diagnostic accuracy. High-resolution 3D MR sequences complement and, in select scenarios, surpass 2D MR sequences in delineating complex meniscal patho-anatomy. This article reviews normal anatomy, meniscal tear types, MR imaging criteria for tear, and imaging correlates of common lesions with emphasis on the advantages, limitations, as well as diagnostics performance of routine 2D and volumetric 3D sequences.

Key points

•
Two-dimensional (2D) magnetic resonance (MR) imaging remains the most commonly used method for meniscal imaging because of its wide availability, fast acquisition, and high in-plane resolution.
•
Three-dimensional (2D) isotropic volumetric MR imaging sequences provide thin-slice imaging without interslice gap and multiplanar reformation capabilities, enhancing detection of complex, radial, and root tears.
•
3D MR imaging can improve preoperative planning and postoperative assessment, especially in evaluating meniscal tear morphology.
•
Diagnostic performance of 3D MR imaging is comparable to or better than 2D MR imaging in several studies, with improved reader confidence and reproducibility.

Abbreviations

2D	2-dimensional
3D	3-dimensional
ACL	anterior cruciate ligament
FS	fat suppression
LMORT	lateral meniscus oblique radial tear
MPR	multiplanar reformation
MR	magnetic resonance
PCL	posterior collateral ligament
PD	proton density–weighted
PHLM	posterior horn of the lateral meniscus
SNR	signal-to-noise ratio
SPACE	Sampling Perfection with Application-optimized Contrasts using different flip angle Evolutions
T2-weighted	T2-weighted

Introduction

Meniscal injuries are highly prevalent in athletic and aging populations, contributing significantly to musculoskeletal morbidity. In sports, they account for approximately 15% to 20% of all knee injuries, particularly in athletes engaged in pivoting and high-impact activities, with traumatic tears frequently occurring alongside anterior cruciate ligament (ACL) injuries in up to 70% of cases. In older adults, degenerative meniscal tears are common, affecting up to 60% of individuals over age 50—even in asymptomatic cases—and are strongly associated with early osteoarthritis progression. ^,^, These injuries are a major driver of knee magnetic resonance (MR) imaging utilization and arthroscopic procedures globally. Left untreated, meniscal damage can accelerate cartilage degeneration and lead to long-term joint dysfunction and disability. ^, MR imaging, the modality of choice for noninvasive evaluation of the knee menisci, allows for detailed assessment of meniscal morphology, tear patterns, anatomic zonal location, as well extent of a tear, and associated intra-articular pathology, providing critical information for diagnosis, treatment planning, and postoperative monitoring. ^,^, MR imaging can distinguish between traumatic and degenerative tears, classify tear types (eg, horizontal, longitudinal-vertical, radial, complex), and evaluate tear extent in all planes. It also enables detection of indirect signs of injury such as parameniscal cysts, meniscal extrusion, and associated menisco-osteochondral unit dysfunction, cartilage or ligament damage. ^,^,

Conventional 2-dimensional (2D) MR imaging sequences, for example, proton density–weighted (PD) or T2-weighted (T2) MR imaging with or without fat suppression (FS), reliably detect meniscal tears, with reported sensitivities and specificities exceeding 80% to 90% compared to arthroscopy, the reference standard. ^,^,^,^,^, Traditional 2D MR imaging, using PD and T2 sequences acquired in sagittal, coronal, and axial planes, typically employs 3 to 4 mm slice thickness with interslice gaps, which can result in partial volume averaging and limited visualization of obliquely oriented or small tears. Despite its high in-plane resolution and widespread availability, 2D MR imaging lacks multiplanar reformation capabilities and may miss subtle or complex meniscal injuries. As such, the evaluation of meniscal pathology by MR imaging has evolved from conventional 2D imaging to advanced 3-dimensional (3D) isotropic techniques, with similar to slightly superior diagnostic performance for the detection of subtle meniscal tears. Advanced 3D isotropic MR imaging techniques (eg, SPACE, CUBE, VISTA) generate thin-slice (typically 0.5–0.7 mm), high-resolution images with multiplanar reformation capabilities, improving visualization of subtle, complex, or root tears. ^,^,^,^,^,^,^,^, Although slightly more susceptible to motion artifacts and sometimes longer in acquisition, 3D MR imaging has demonstrated comparable or superior sensitivity and specificity to 2D imaging in detecting meniscal tears, particularly when assessing subtle or nonorthogonal lesions. ^, The purpose of this article is to discuss normal meniscal anatomy and pathology on MR imaging, highlighting the various advantages and limitations of conventional 2D and advanced 3D sequences in routine clinical practice.

Normal meniscus anatomy on magnetic resonance imaging

The knee contains 2 menisci—medial and lateral—each serving as a fibrocartilaginous cushion between the femoral condyles and tibial plateau. The medial meniscus is C-shaped, broader posteriorly, and more tightly anchored to the joint capsule and medial collateral ligament, making it more prone to injury ( Fig. 1 ). The lateral meniscus, by contrast, is more circular and mobile, with looser capsular attachments and stabilization by means of the meniscofemoral ligaments ( Fig. 2 ). Meniscal vascularity is regionally divided into 3 zones: the red-red zone (outer third) is well vascularized; the red-white zone (middle third) has limited perfusion, and the white-white zone (inner third) is avascular. ^, These zones have important implications for healing potential and surgical decision making, as tears in vascular regions are more amenable to repair. On a microscopic level, the menisci are composed predominantly of type 1 collagen fibers, organized primarily in a circumferential orientation, with radial tie fibers providing shear resistance and structural coherence. This architecture supports the transmission and distribution of axial loads into hoop stresses. The vascularity pattern, which diminishes centrally, is critical for tissue regeneration following injury. Histologically, the outer vascular zone contains more fibroblastic cells and vascular elements, whereas the inner region consists of sparsely cellular, fibrocartilaginous tissue embedded in a dense extracellular matrix. ^,

A six-panel, 3 D M R I of a knee shows a normal C-shaped medial meniscus. White arrows in the axial, sagittal, and coronal views point to the normal structure. — Fig. 1

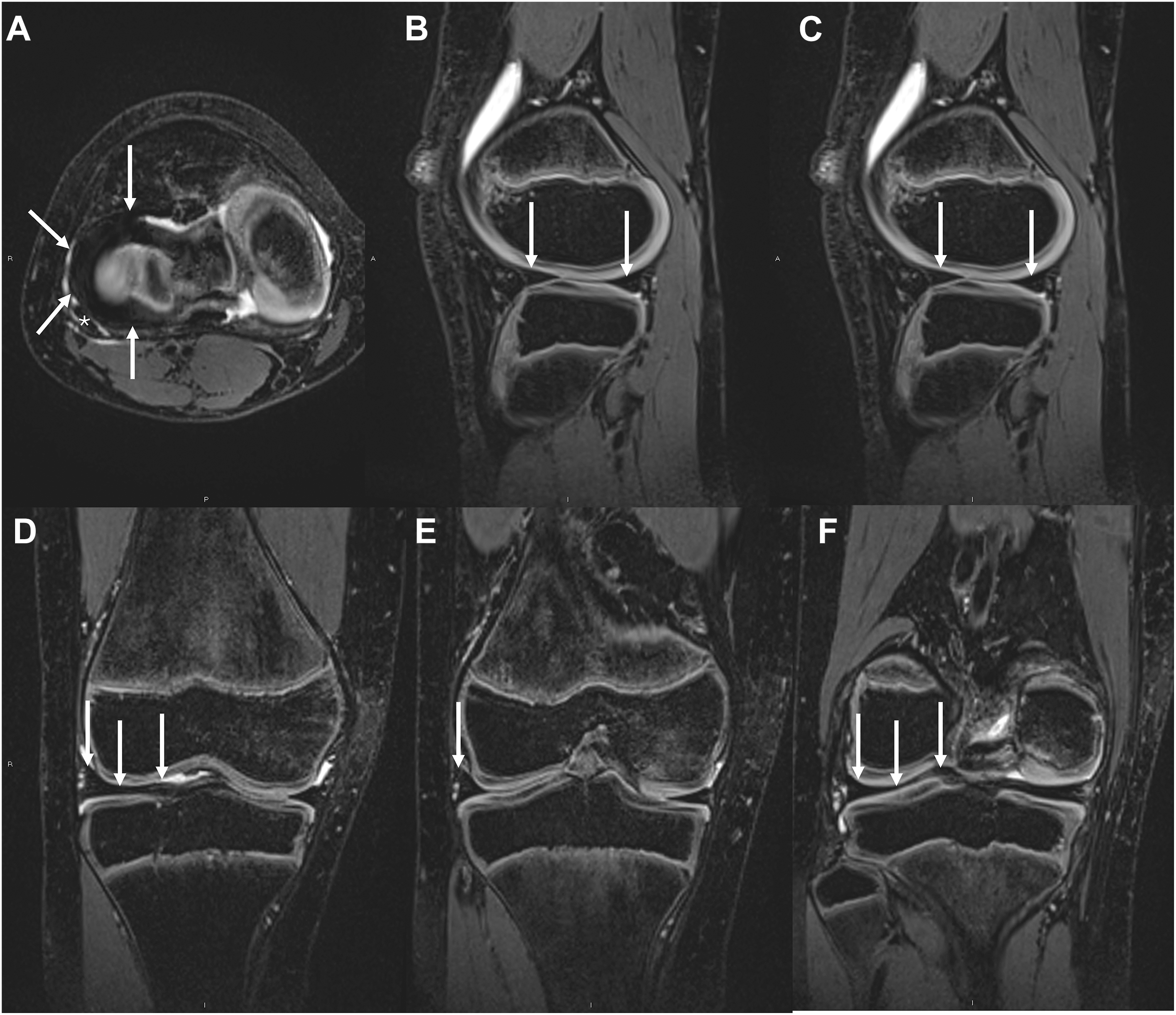

A six-panel, 3 D M R I of a knee shows a normal lateral meniscus. A few arrows in the axial, sagittal, and coronal views point to the normal structure. — Fig. 2

MR imaging provides excellent visualization of normal meniscal anatomy and its zonal architecture. On 2D MR imaging, the menisci appear as low-signal, triangular structures in the sagittal plane, with the body of the meniscus typically visible as a bowtie-shaped signal on 2 or more consecutive slices. ^, Coronal images help evaluate meniscal height and extrusion, while axial images offer detailed assessment of root attachments. However, the limited slice orientation and nonisotropic resolution of 2D MR imaging can obscure subtle or complex anatomy. In contrast, 3D isotropic sequences allow for high-resolution multiplanar reformatting, improving delineation of root attachments, interhorn continuity, and radial fiber orientation. ^, These features are particularly valuable in assessing root tears, anatomic variants, and subtle morphologic abnormalities that may be challenging to detect on conventional 2D knee MR imaging sequences because of differences in slice thickness and interslice gaps. ^,

Magnetic resonance imaging techniques for meniscus imaging

Conventional 2D MR imaging sequences remain the cornerstone of routine knee imaging and provide reliable assessment of meniscal morphology and pathology. Commonly used sequences include PD and T2-weighted MR imaging with and without fat suppression acquired in multiple orthogonal planes—sagittal, coronal, and axial. These sequences typically use 3 to 4 mm slice thickness with 0.5 to 1 mm interslice gaps, which can result in partial volume averaging and occasional signal dropout at the meniscal margins. Despite these limitations, optimized 2D sequences offer high in-plane resolution and remain widely available on most clinical MR imaging systems. ^,^,^,^,

Advanced 3D MR imaging sequences have emerged to overcome the spatial limitations of 2D imaging by acquiring thin-slice isotropic datasets that can be reformatted into any desired plane. Key vendor-specific sequences include SPACE (Sampling Perfection with Application-optimized Contrasts using different flip angle Evolutions, Siemens, Erlangen, Germany), CUBE (General Electric (GE) Healthcare— Waukesha, Wisconsin, USA), and VISTA (Philips— Best, The Netherlands). These fast spin-echo–based 3D sequences achieve slice thicknesses of 0.5 to 0.7 mm with isotropic resolution, reducing interslice gaps and enhancing anatomic detail. Improvements in parallel imaging, variable flip angle techniques, and compressed sensing have reduced acquisition times while maintaining excellent signal-to-noise ratio (SNR) and tissue contrast, making them increasingly viable for routine use. ^,^,^,^,^,^,

Meniscal tear classification and magnetic resonance imaging appearance

Tear Types and Morphologies

Meniscal tears exhibit a wide range of morphologies that influence treatment decisions and prognosis; they are categorized by their shape and location when visualized on MR imaging, in which high-intensity intrameniscal signals against otherwise low-intensity meniscal tissue communicate with at least 1 articular surface on 2 consecutive 2D or 3D knee MR imaging sequences. ^, Common tear types include longitudinal-vertical, horizontal, radial, flap, complex, and root tears, and accurate characterization and description on MR imaging is critical for treatment planning. Table 1 describes the various meniscal types, MR imaging appearance, common location, and clinical significance of each tear type.

Table 1

Common meniscal tear types, definition, magnetic resonance imaging appearance, common location, and clinical significance

Tear Type	Definition	Typical MR imaging Appearance	Common Location	Clinical Significance
Longitudinal tear	Vertical tear parallel to the long axis of the meniscus, perpendicular to the tibial plateau	Vertical linear signal extending to superior/inferior surface, divides the meniscus into central and peripheral components, may displace if large	Posterior horn of medial meniscus	Maybe amenable to repair in vascular zones
Horizontal tear	Splitting of meniscus parallel to tibial plateau	Horizontal linear signal dividing the superior and inferior surfaces; parallel to the tibial plateau; contacts articular surface or free edge centrally	Posterior horn and body	Common in degenerative disease; associated with parameniscal cysts
Radial tear	Perpendicular to circumferential fibers, extending from free edge	Ghost meniscus, truncation of meniscal body, radial cleft	Central third (white-white zone)	Disrupts hoop stress, may mimic total meniscectomy biomechanically
Flap (parrot-beak) tear	Oblique tear with a displaced meniscal fragment	Sharp, oblique linear signal; displaced flap fragment	Midbody of medial or lateral meniscus	May cause mechanical symptoms, often unstable
Complex tear	Combination of two or more tear patterns (eg, radial + horizontal)	Irregular morphology and signal intensity	Often in degenerative knees	Poor healing potential, often not suitable for repair
Bucket-handle tear	Longitudinal tear with central displacement of inner fragment	Double PCL sign; absent bowtie sign; displaced fragment in intercondylar notch	Posterior horn of medial meniscus	Often causes locking, requires urgent surgical attention
Root tear	Tear or avulsion at the meniscal root attachment	High signal at root insertion, ghost meniscus, radial tear-like morphology at attachment	Posterior horn root (medial > lateral)	Functionally similar to meniscectomy, associated with joint degeneration
Meniscocapsular separation (Ramp lesion)	Tear at the junction between meniscus and joint capsule	High signal line at meniscocapsular junction, fluid tracking into peripheral space	Posterior horn of medial meniscus	Associated with instability and ACL tears
Wrisberg rip	Longitudinal tear in periphery of lateral meniscus and capsule	Vertical line visible beyond 14 mm lateral to lateral margin of posterior cruciate ligament	Periphery of posterior horn of lateral meniscus	Associated with posterior instability and ACL tears
Lateral Meniscus Oblique Radial Tear	Radial or oblique tear through meniscus substance	Oblique radial tear	Lateral meniscus between popliteal hiatus to mid-body	Associated with loss of hoop tension and ACL tears as well as lateral collateral ligament complex injury

Longitudinal tears

Longitudinal-vertical tears run perpendicular to the tibial plateau and parallel to the long axis of the meniscus, dividing the meniscus into central and peripheral halves. More commonly occurring in younger people after significant trauma to the knee, these tears typically present as a vertically oriented line of high signal intensity in contact with 1 or both articular surfaces on MR imaging. ^, Longitudinal tears tend to have a higher predilection for the peripheral third of the meniscus and posterior horns, which renders them more amenable to surgical repair given the richer vascularization of the afflicted area.

Horizontal tears

Horizontal or cleavage tears ( Fig. 3 ) run parallel to the tibial plateau through the midmeniscal body and, compared with longitudinal tears, are more commonly occurring in adults over 40 years with underlying degenerative changes and absent inciting event or trigger. A horizontally oriented line of high signal intensity in contact with either the meniscal surface or the free edge is characteristic on MR imaging, and, when completely extending to the periphery, tends to be associated with parameniscal cysts, likely because of direct communication with joint fluid. These tears are more prevalent in the white-white zone and usually chronic when diagnosed, thus less amenable to surgical repair, with the treatment often involving partial meniscectomy and open cystectomy with decompression of the associated parameniscal cyst when applicable. ^,

A two-panel 3 D M R I of a left knee shows a horizontal tear of the medial meniscus mid-body. Panel A is a coronal view and panel B is a sagittal view, with arrows marking the tear. — Fig. 3

Radial tears

Radial tears originate from the free edge of the meniscus and run perpendicular to the tibial plateau and long axis of the meniscus, transecting the longitudinal collagen bundles in their course toward the periphery ( Fig. 4 ). Consequently, the meniscal hoop strength is significantly compromised, which results in a precipitous loss of function with possible meniscal extrusion. Similar to horizontal tears, radial tears more commonly occur in the white-white zone and are thus less amenable to surgical repair; however, MR imaging detection is often challenging, which can result in preoperative underdiagnosis. Radial tears have a higher predilection to either the posterior horn of the medial meniscus or the junction of the anterior horn and body of the lateral meniscus. ^, Various MR imaging findings have been identified with radial tears depending on the orientation of the injury relative to the imaging axis, including the truncated triangle sign, the cleft or marching cleft sign, and the ghost meniscus sign. On axial sequences, radial tears can present as clefts with perpendicular orientation to the meniscal free edge. Familiarity with these findings is critical to ensure optimal diagnostic performance during MR imaging evaluation and interpretation.

A three-panel 3 D M R I shows a small radial tear of the lateral meniscus mid-body. Panel A is a sagittal view, panel B is a coronal view, and panel C is an axial view, with arrows marking the tear. — Fig. 4

Root tears

Root tears are radial-type tears with a high association with meniscal extrusion and, similar to radial tears, can face diagnostic challenges with MR imaging and arthroscopy, which subsequently impedes prompt evaluation and timely intervention. ^,^,^,^,^,^,^,^,^, Coronal fluid-sensitive MR imaging g sequences allow for a better definition of the roots ( Fig. 5 ), which can in turn increase tear detection sensitivity and specificity. ^, Given their proximity to rich synovial blood that facilitates healing, acute root tears without significant associated degenerative changes are often promptly repaired.

A two-panel 3 D M R I of a left knee shows a complete radial tear of the medial meniscus posterior root attachment. Panel A is a coronal view, and panel B is an axial view. — Fig. 5

Complex and displaced tears

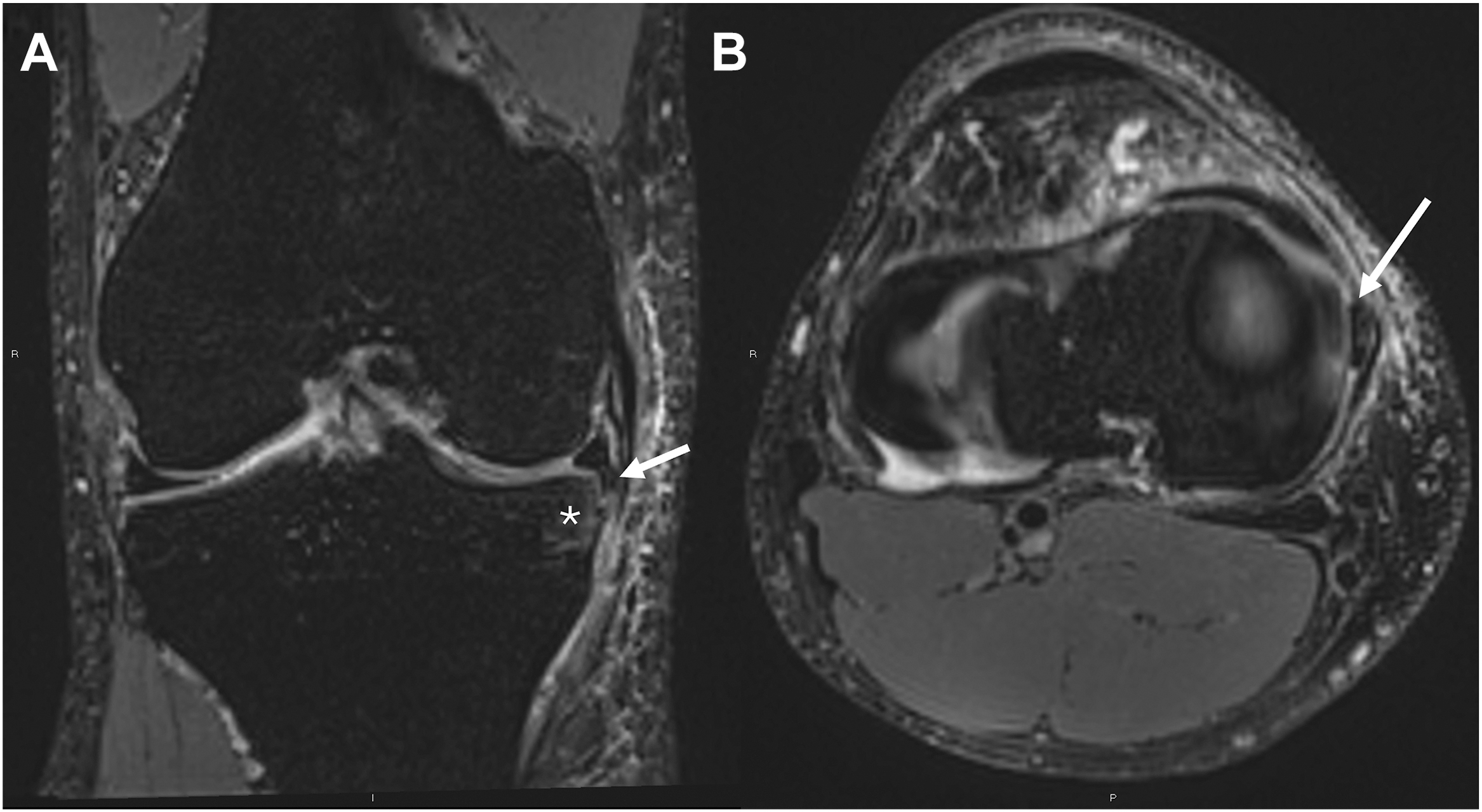

Complex tears amount to a combination of any 2 or all 3 longitudinal, horizontal, and radial tears, with an appearance characterized by meniscal fragmentation with multiplanar tear extension. On the other hand, displaced tears denote tears that involve either complete fragmentation of a piece of meniscus or flipping of a piece that otherwise remains attached to the rest of the meniscal body. Such tears include flap tears ( Figs. 6–8 ), which involve partially detached fragments of horizontal tears, bucket-handle tears, defined by complete longitudinal tears with centrally migrating fragments, and parrot-beak tears, which denote radial tears with partially detached fragments. Bucket-handle tears ( Fig. 9 ) are 7 times more likely to occur in the medial meniscus compared with the lateral meniscus and have various associated MR imaging findings that tend to confer higher sensitivity than specificity: an absent bow tie, a fragment within the intercondylar notch, a double posterior collateral ligament (PCL) ( Fig. 10 ), a double anterior horn or flipped meniscus, and a disproportionally small posterior horn. ^,^,^,
